25kV Underground Primary Distribution Cable Solid Aluminum EPR/CN/LLDPE MV-90 100% I.L. 260 mils
Conductor：
Aluminum Solid Conductor
Insulation：
EPR-Based Insulation
Jacket：
LLDPE Jacket with 3 Red Stripes
Neutral：
Copper Wire Concentric
Rated Voltage：
15kV-35kV
Temperature range：
90℃
Size range：
2AWG-4/0AWG
Standard：
UL 1072
Color：
Black
Description
Download
Conductor
One Single Aluminum Conductor
Insulation and Sheath
EPR Insulation & LLDPE Jacket
Shield
Extruded Semi-Conducting Conductor Shield
Temperature Rating
90°C
25kV Distribution Cable Solid Aluminum EPR/CN/LLDPE MV-90 100% I.L. 260 mils

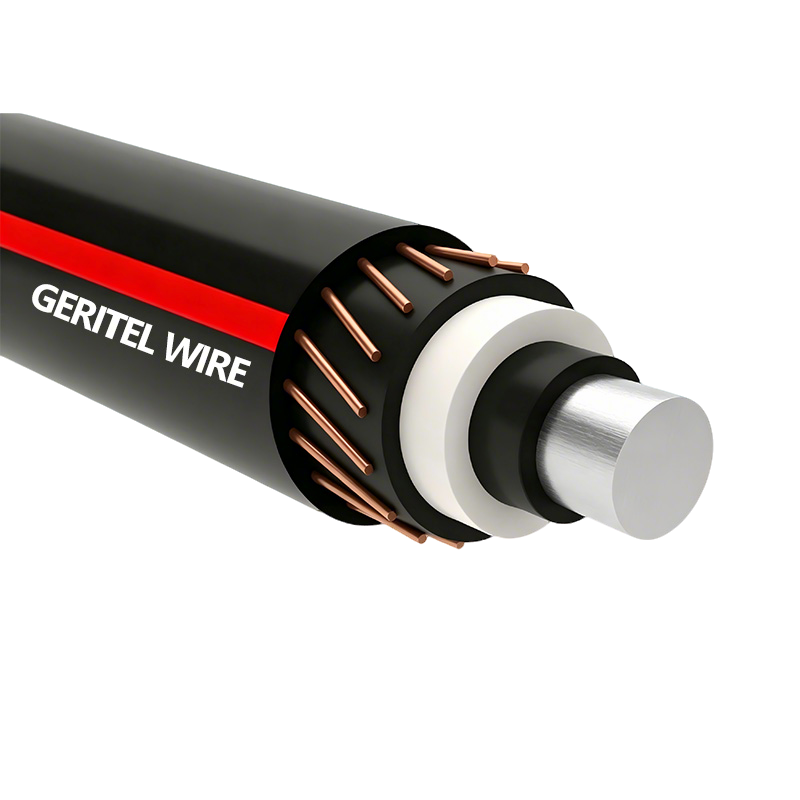

Our 25kV Aluminum Underground Primary Cable 100% I.L. 260 mil, also known as Medium Voltage URD Cable and Direct Burial Underground Primary Cable, is MV-90 rated medium voltage cable built with solid aluminum conductor, EPR insulation, helical copper concentric neutral and UV-resistant LLDPE jacket with 260 mils 100% insulation level. As durable Aluminum Medium Voltage Power Cable, it is engineered for direct burial or duct underground primary power distribution for utility, solar and wind energy infrastructure.
Single Core MV90 Cable
MV 90 single conductor power cable, for up to 35 kV applications. It is non-shielded for use in commercial and industrial power distribution systems.
Conductors：Aluminum
Rated Voltage Uo/U (Um) : 15 kV-35kV
Insulated：EPR
Jacket：LLDPE
Standards：
UL1072
Temperature range：90℃
Advantages of MV Cable
This Aluminum Medium Voltage Power Cable series including 25kV Aluminum Underground Primary Cable 100% I.L. 260 mil and Medium Voltage URD Cable features high dielectric strength, low moisture absorption and anti-treeing EPR insulation; the LLDPE jacket of our Direct Burial Underground Primary Cable is sunlight-proof and supports 90°C continuous operating temperature for long underground service life.
Product Description

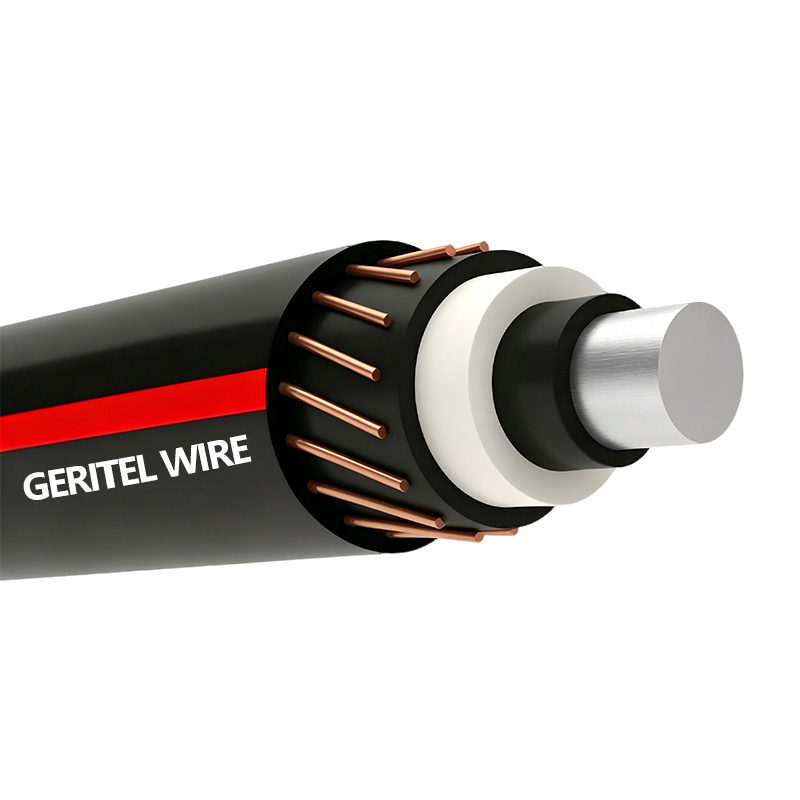

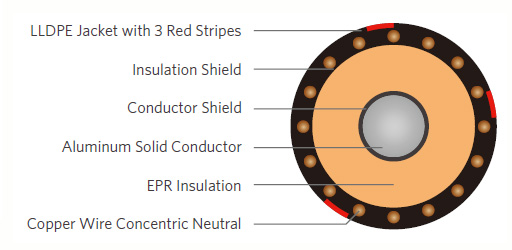

The Medium Voltage Underground Distribution (UD) cables consist of an Aluminum Solid conductor, covered with ethylene propylene rubber (EPR), a concentric neutral of helically applied copper wires, and a linear low-density polyethylene (LLDPE) jacket with 3 extruded red stripes.
Applications
- Suitable for underground primary power applications
- For wet or dry locations
- For direct burial or in duct
Features
- High dielectric strength
- Low moisture absorption
- Low dielectric loss
- Excellent resistance to treeing
- Jacket is sunlight-resistant
- Designed to operate continuously at a conductor temperature not exceeding
105°C for normal operations
140°C for emergency overload
250°C for short circuit
| SPECIFICATIONS | |
|---|---|
| Conductor Count | 1 conductor |
| Conductor | Aluminum 1350 Solid |
| Gauge Sizes | Available in 2AWG through 4/0AWG |
| Conductor Strand Shield | Extruded thermoset semi-conducting polymer over the conductor |
| Insulation | Ethylene Propylene Rubber (EPR) |
| Insulation Shield | Extruded thermoset semi-conducting polymer over the insulation |
| Neutral | Helically applied, annealed, solid bare copper wires |
| Jacket |
Linear Low-Density Polyethylene (LLDPE) |
| Jacket Marking | 00000 FT GREATER WIRE CABLE XXAWG (KCMIL) AL SOL 1/C XXKV XXX% INSUL LEVEL XXXMILS EPR AA X #BB LLDPE JKT TYPE MV-90 (UL) MADE IN USA MMDDYYYY (LIGHTNING BOLT) |
| Packaging | Non-returnable wood reels in a variety of lengths and dimensions |
| Performance Compliances | ASTM B3 ASTM B230 ASTM B609 ICEA S-94-649 ICEA T-34-664 (moisture blocked jacket), as needed AEIC CS8 UL 1072 (MV-90) RUS U1 |
Aluminum Solid, 25kV 100% I.L., 260 mils
| Conductor Size AWG/kcmil |
Nom. Conductor Diameter in (mm) |
Insulation Diameter in (mm) | Concentric Neutral No. x AWG |
Jacket Thickness in (mm) |
Approx. Overall Diameter in (mm) | Approx.Net Weight LBS/kft (kg/km) | Ampacity | |
| Underground Duct | Direct Buried | |||||||
| 1/3 Reduced Neutral | ||||||||
| 1 | 0.289(7.3) | 0.87(22.1) | 6 x 14 | 0.050 (1.3) | 1.19(30.2) | 610 (908) | 140 | 175 |
| 1/0 | 0.325(8.3) | 0.90(22.9) | 6 x 14 | 0.050 (1.3) | 1.23(31.2) | 655 (975) | 155 | 195 |
| 2/0 | 0.365(9.3) | 0.94(23.9) | 7 x 14 | 0.050 (1.3) | 1.27(32.3) | 720 (1,071) | 180 | 220 |
| 3/0 | 0.410(10.4) | 0.99(25.1) | 9 x 14 | 0.050 (1.3) | 1.32(33.5) | 805 (1,198) | 200 | 250 |
| 4/0 | 0.460(11.7) | 1.04(26.4) | 11 x 14 | 0.050 (1.3) | 1.37(34.8) | 900 (1,339) | 235 | 285 |
| Full Neutral | ||||||||
| 1 | 0.289(7.3) | 0.87(22.1) | 13 x 14 | 0.050 (1.3) | 1.19(30.2) | 695 (1,034) | 140 | 170 |
| 1/0 | 0.325(8.3) | 0.90(22.9) | 16 x 14 | 0.050 (1.3) | 1.23(31.2) | 775 (1,153) | 155 | 195 |
| 2/0 | 0.365(9.3) | 0.94(23.9) | 20 x 14 | 0.050 (1.3) | 1.27(32.3) | 875 (1,302) | 180 | 220 |
| 3/0 | 0.410(10.4) | 0.99(25.1) | 25 x 14 | 0.050 (1.3) | 1.32(33.5) | 995 (1,481) | 205 | 250 |
| 4/0 | 0.460(11.7) | 1.04(26.4) | 32 x 14 | 0.050 (1.3) | 1.37(34.8) | 1,150 (1,711) | 235 | 285 |
